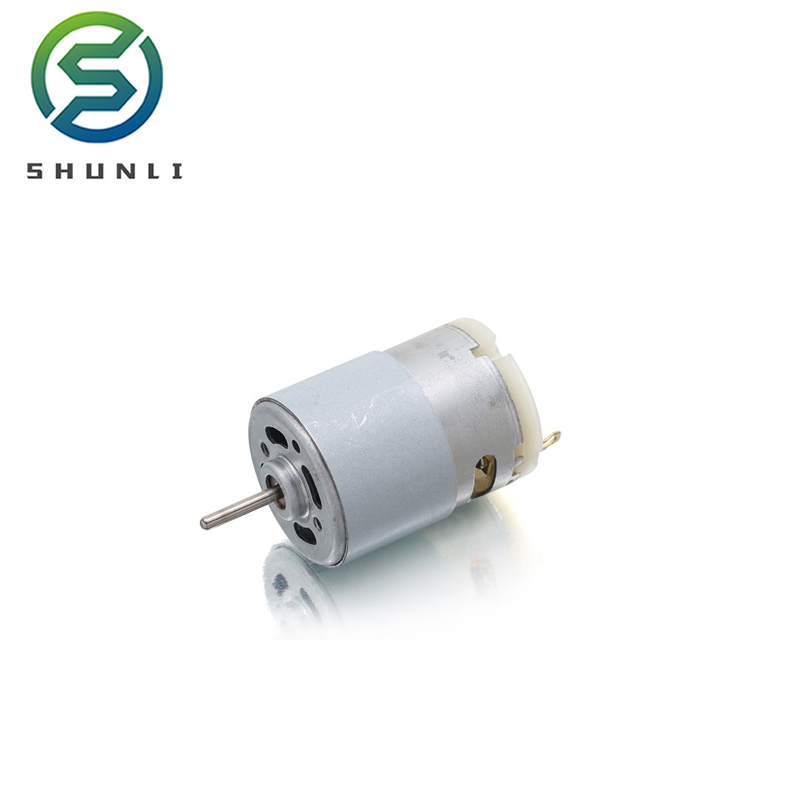

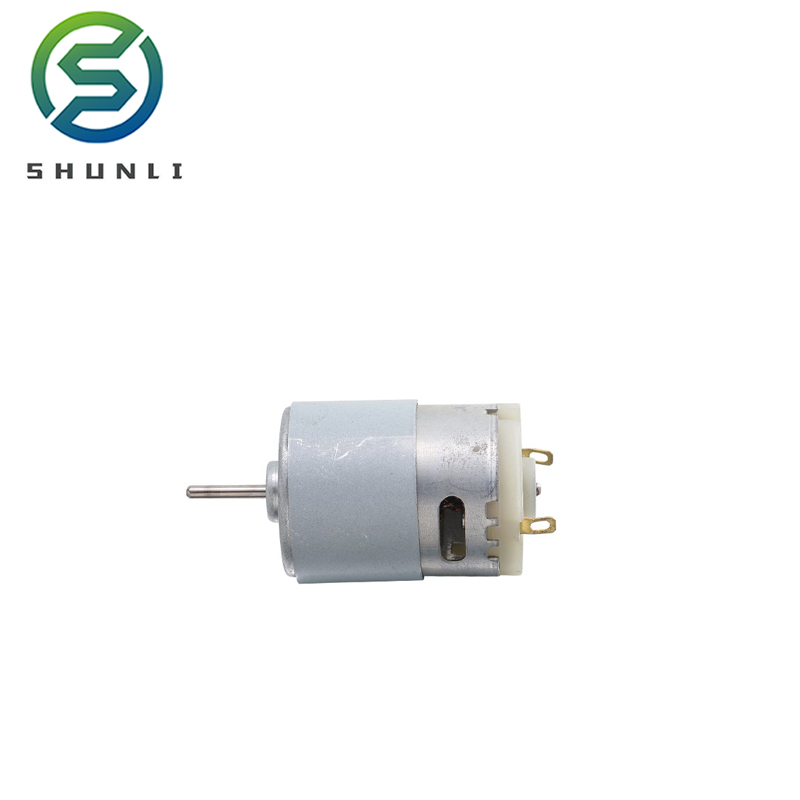

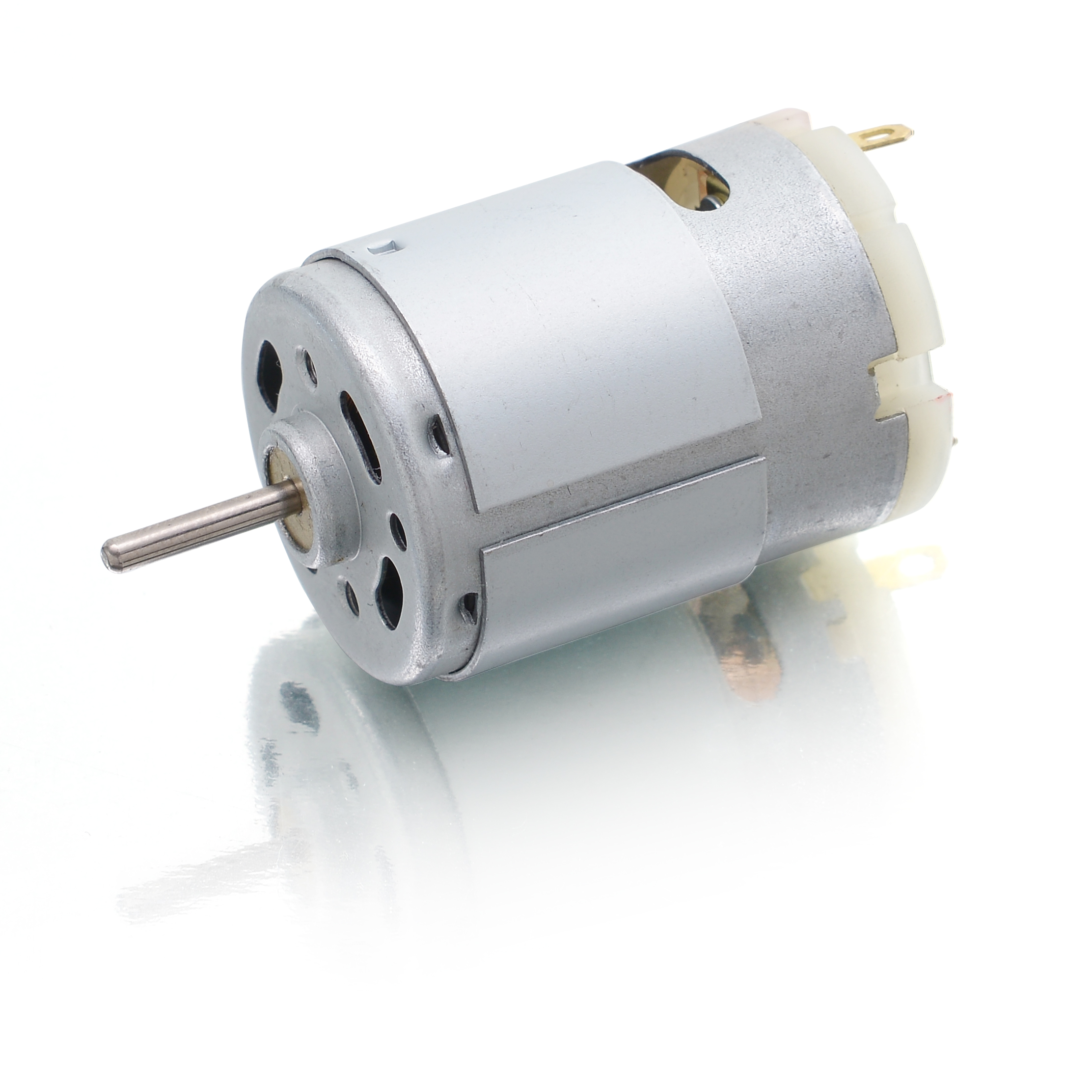

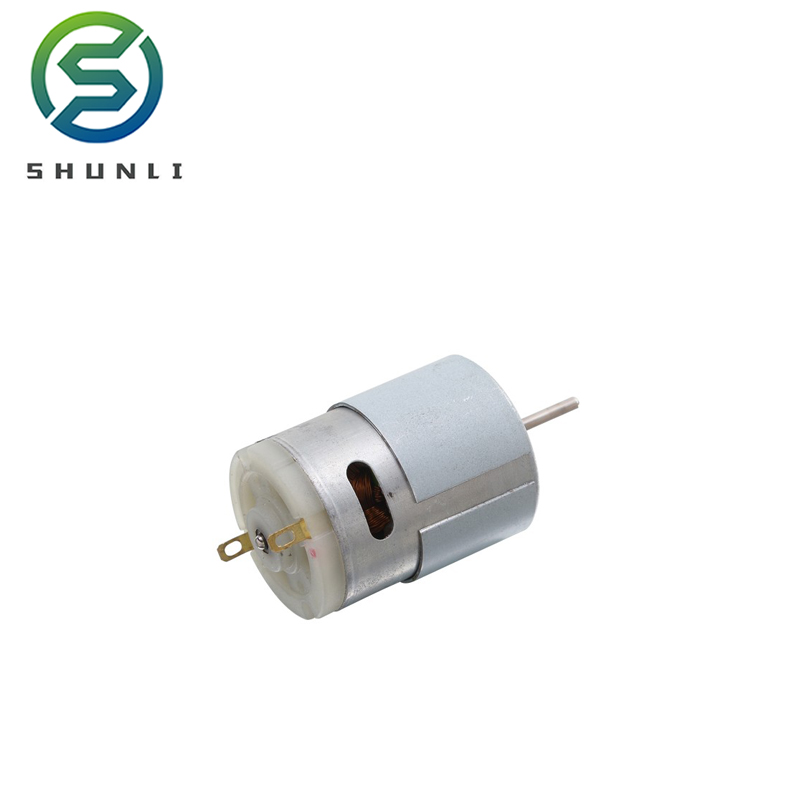

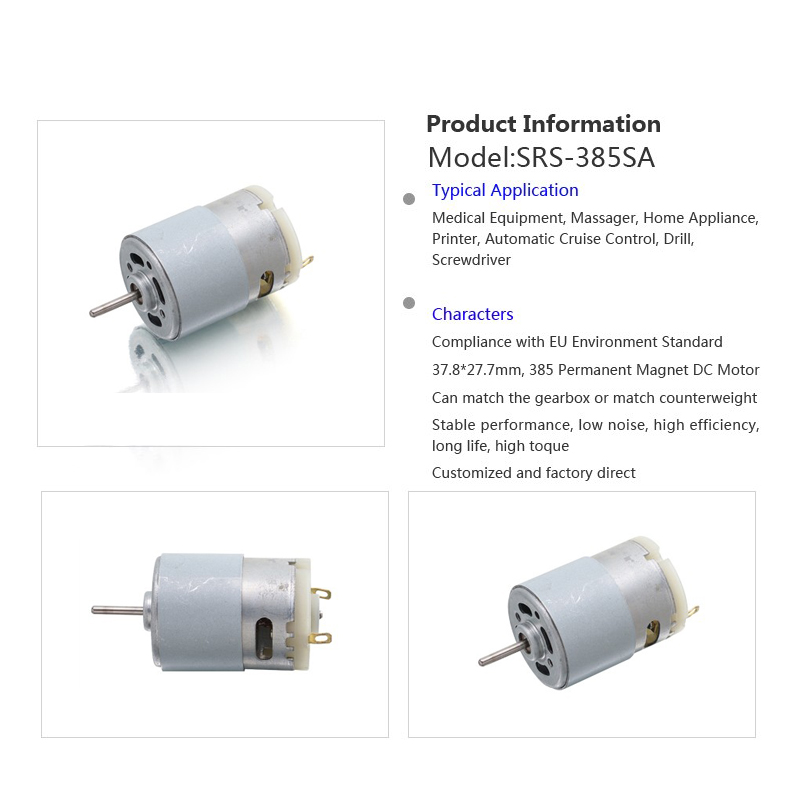

12 Dc Motor 9000 Rpm Brush Micro Motor 6-24v Is Available

1 / 5

12 Dc Motor 9000 Rpm Brush Micro Motor 6-24v Is Available

Send Inquiry

Product Description

12 dc motor 9000 rpm Brush micro motor 6-24v is available

Promotion

Product Description

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m / gf.cm)	Power (W)	Current (A)	Torque (mN.m / gf.cm)
RS-380SH	4052	3.0~6.0	4.8VDC	7800	0.32	6701	1.95	9.9/101	6.98	11.9	70.6/720
RS-380SH	3557	6.0~12.0	12VDC	21200	0.44	18367	2.85	11.26/114.9	21.68	18.5	84.3/860
RS-385SH	17110	6.0~24.0	24VDC	11000	0.15	9034	0.69	10.7/109	10.12	3.16	59.8/610
RS-385SH	2267	6.0~12.0	12VDC	10000	0.17	8340	0.85	7.5/76.5	6.53	4.29	45/459

Application

Product Specifications Section Separator

Our Company

Established in 2005, the enterprise is a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.

Production Process

Certifications

Frequently Asked Questions (FAQ)

1. Q: Are you trading company or manufacturer?

A: We're factory. We specialize in micro dc motor and dc gear motor more than 14 years.

2. Q: What is the payment term for new customer?

A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Mater Card, Visa, etc. Customer also can pay with PayPal or TT etc.

3. Q: I can't find suitable motor on your website, can you customize the motor for me?

A: Yes, we can customize a suitable motor according to our customer's requirements.

4. Q: Do you have certificates for the motors?

A: Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.

5. Q: How is your Quality Control?

A: We have professional checking staff on every production line process. After finishing the whole motor, we have entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.

Looking forward to your reply!
