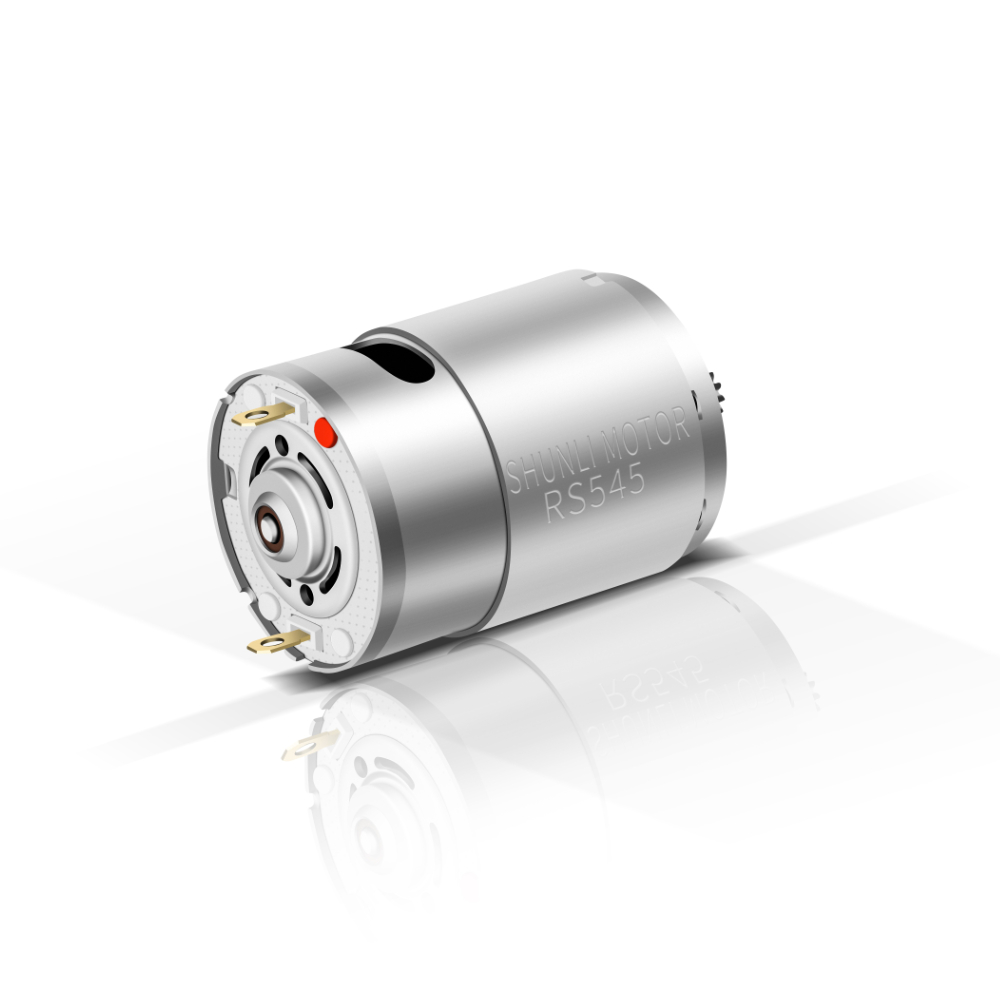

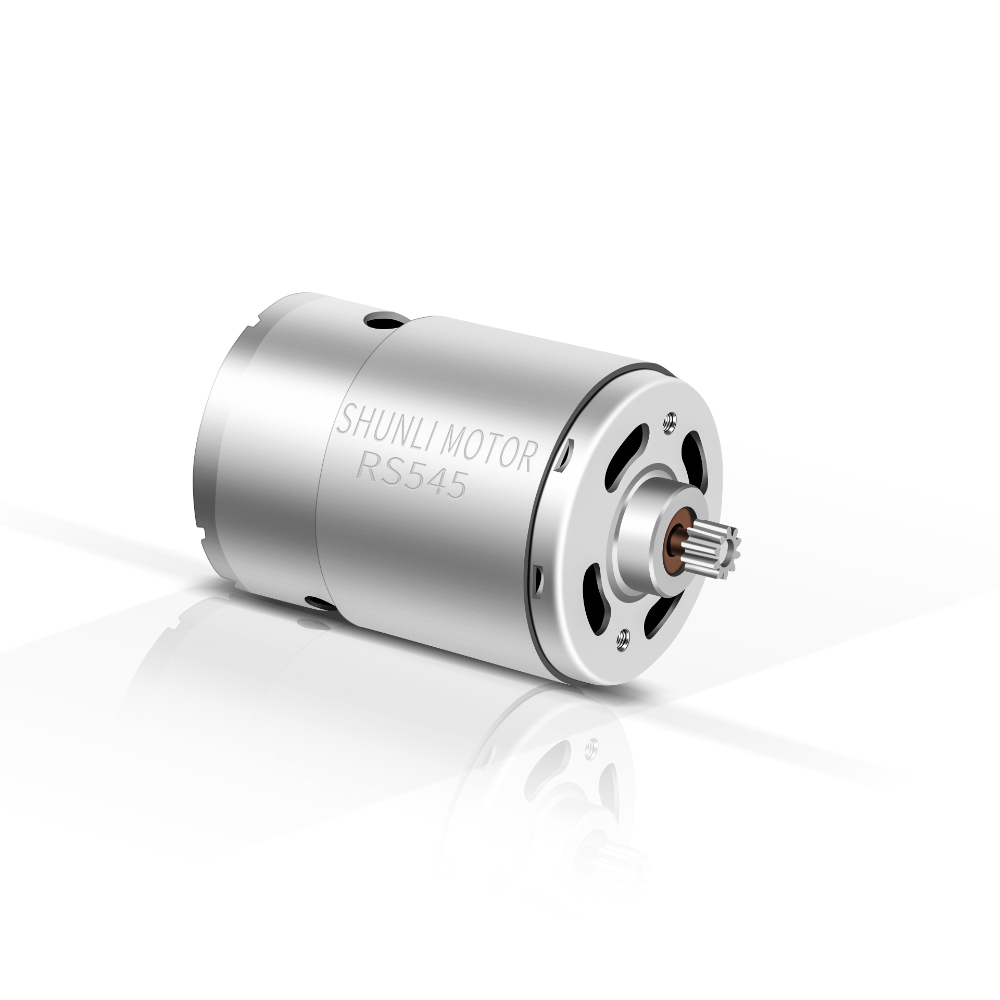

Shunli 6v 12v Dc Gear Motors 24v 15000 Rpm Mini Dc Motor Rs-555 with the Lowest Price

Product Details

Dc Gear Motors 24v 15000 Rpm Mini Dc Motor Rs-555 Specifications

Motor Customized Specification, Please contact us.

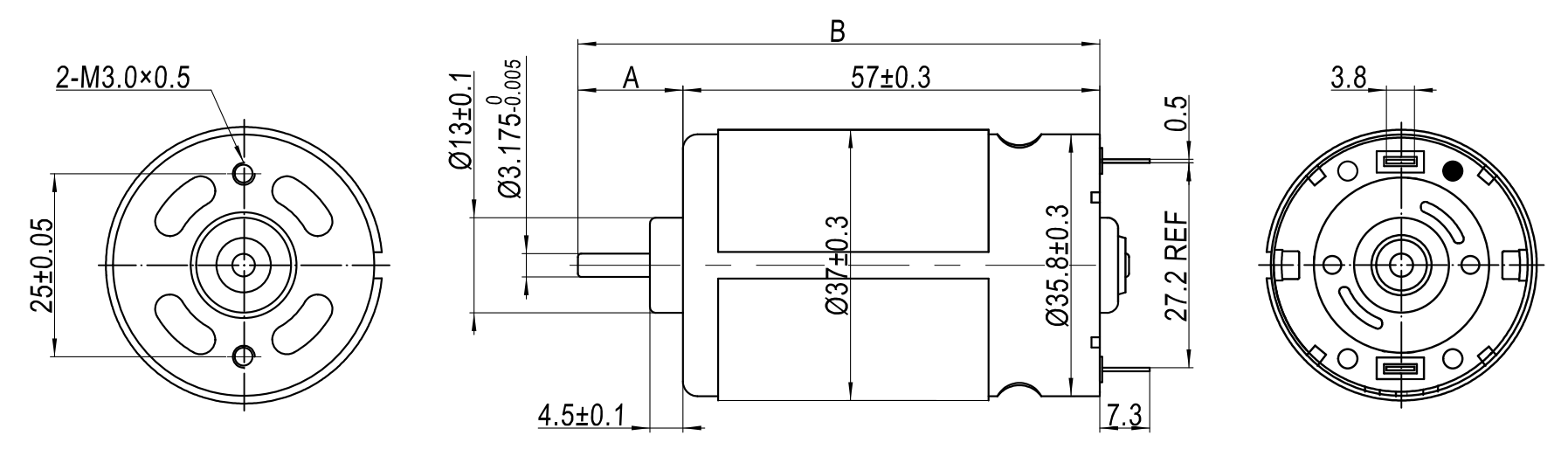

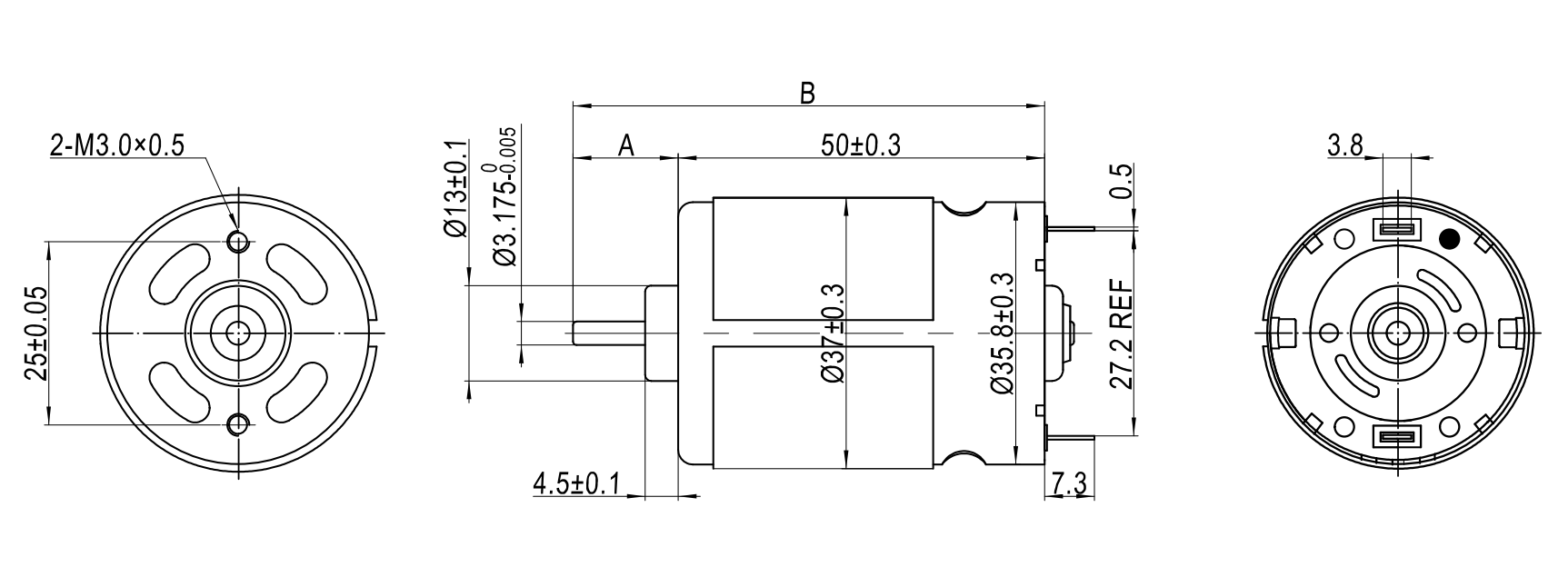

Reference Drawing

RS - 545 A

RS - 555 A

RS - 575 A

The length of shaft can be customized, Please contact us.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated				Stall
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m / gf.cm)	Power (W)	Current (A)	Torque (mN.m / gf.cm)
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6	4.8	204/2080
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36	48.89	281.4/2870
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35	11.31	156/1591
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09	4.2	124.5/1270

Application

Certifications

Why Choose Us

Professional Factory

We are a factory specializing in producing motors for more than 14 years. Our professional R&D team and mature management ensure a reliable and efficient cooperation experience.

Strict Quality Control

To guarantee the highest quality standards, every step from raw material inspection to final shipment is carefully monitored. Quality is the absolute foundation of our development.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.

What is the payment term for a new customer?

We can draw up online trade assurance orders, allowing payments via credit cards (Master Card, Visa, etc.), PayPal, or T/T transfers.

I cannot find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize technical specifications, shaft lengths, and dimensions according to our customer's requirements.

Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, and other standard certifications. If you need other specific certificates, we can apply for them.

How is your Quality Control?

We have professional inspection staff on every production line process. Finished motors undergo rigorous testing with advanced equipment, including hardness testers, 2.5D image testers, salt spray chambers, life testers, and temperature/noise test machines.

Can I request samples for testing before bulk orders?

Yes, sample evaluations are welcome to test the motor performance and confirm they meet your application requirements.
