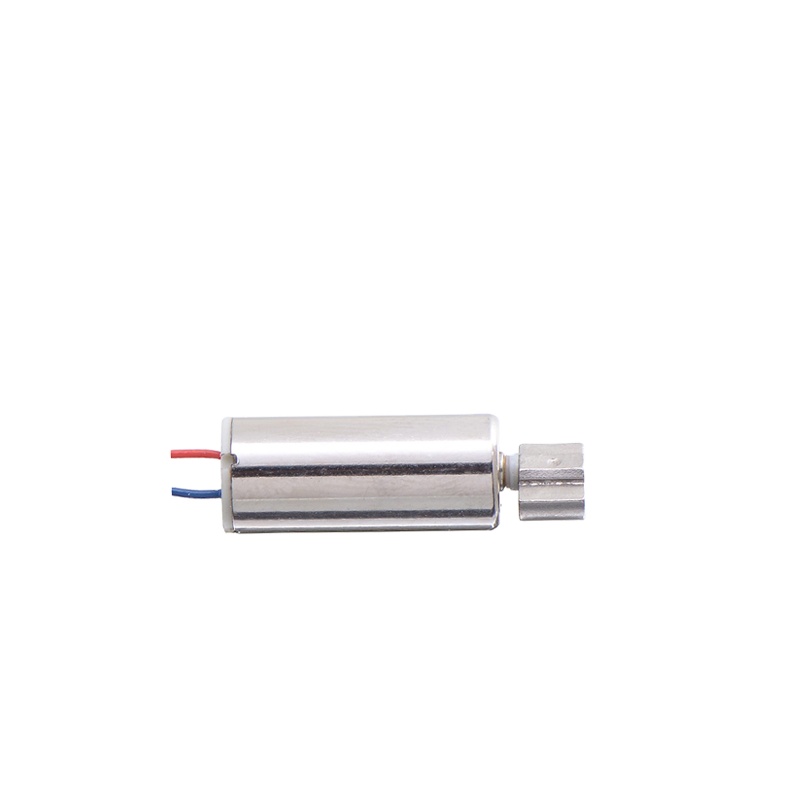

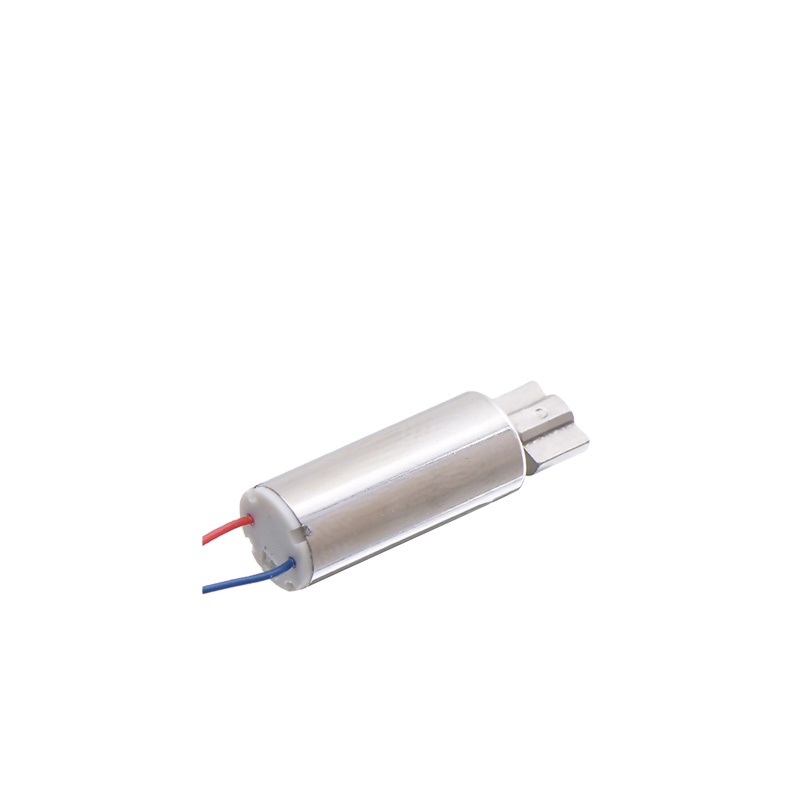

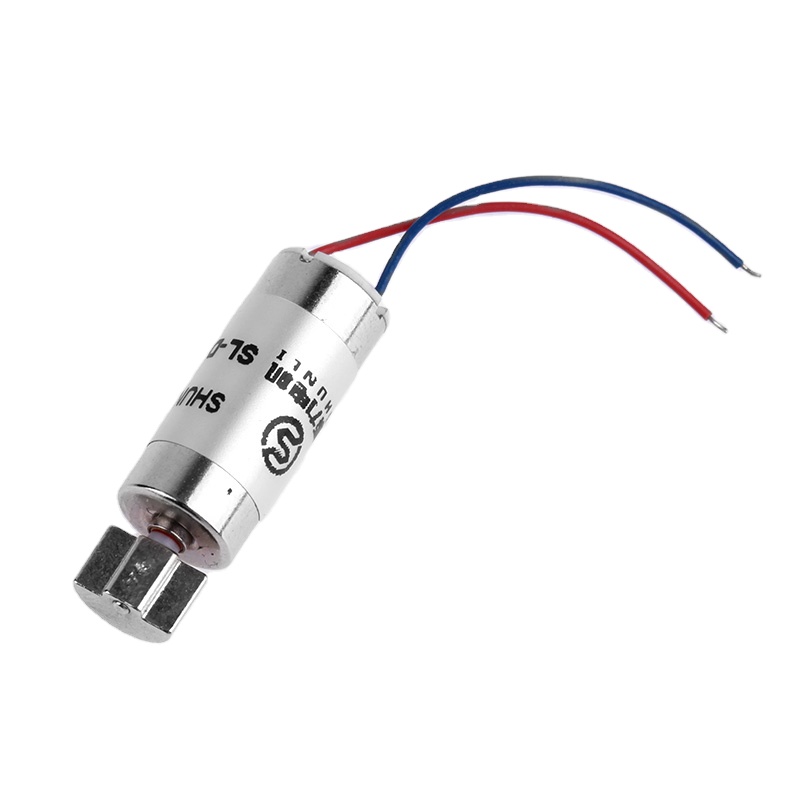

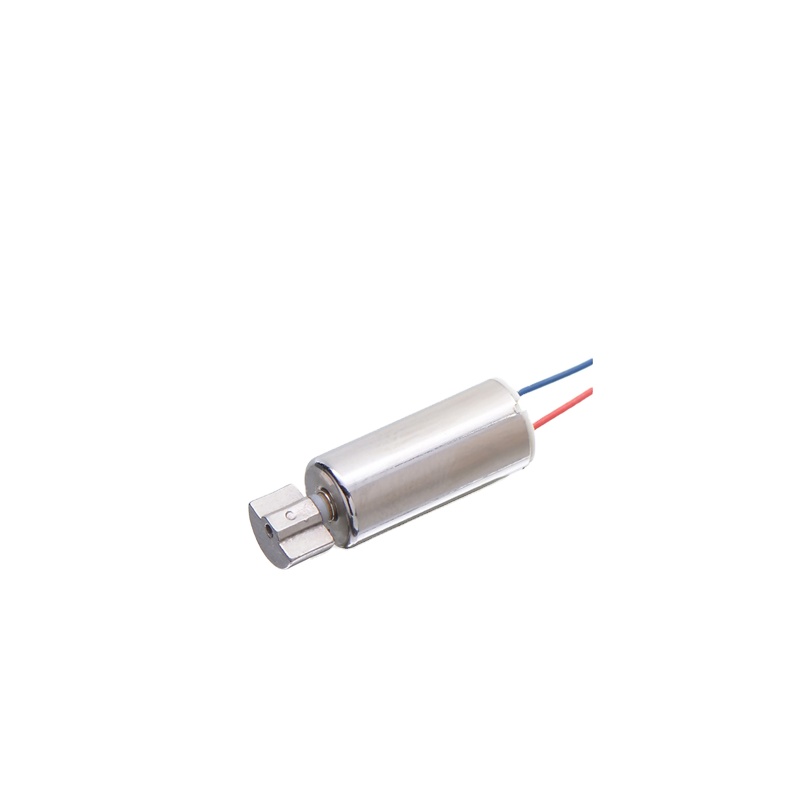

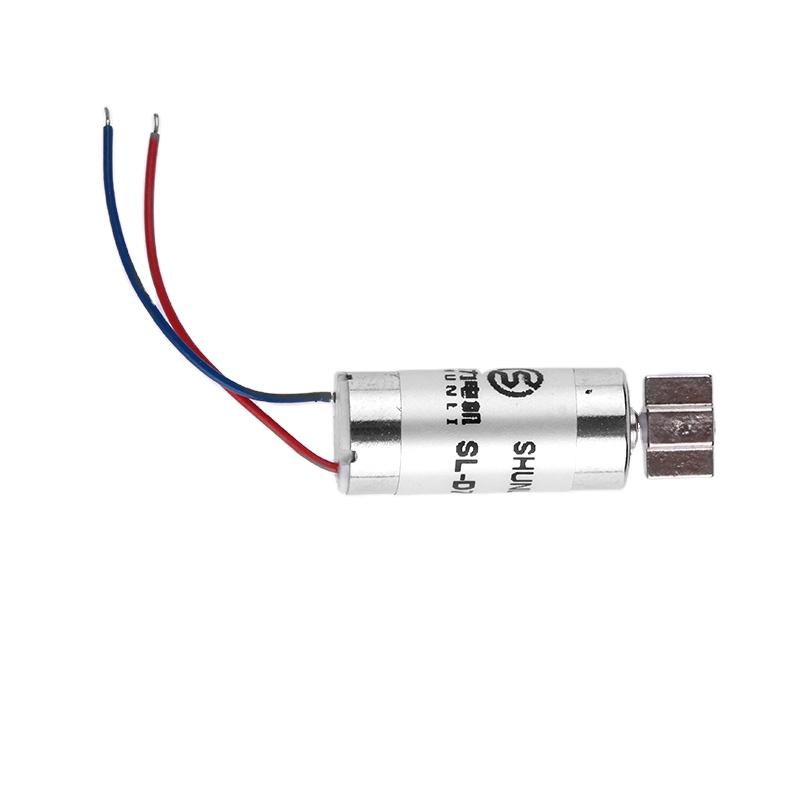

Shunli Custom Small Dc Motor Brush Low Rpm 2.4v 3.7v 5v Dc Electric Mini Vibrator Motor Adult Toy

Product Description

Custom Small DC Motor Brush Low RPM 2.4V 3.7V 5V DC Electric Mini Vibrator Motor for Adult Toys

Micro Brushed DC Motor Vibration Motor Technology High Performance & Low RPM Multiple Voltage Specifications
Product Overview
Custom Small DC Motor Brush Low RPM 2.4V 3.7V 5V DC Electric Mini Vibrator Motor Adult Toy
Custom Small DC Motor Brush Low RPM 2.4V 3.7V 5V DC Electric Mini Vibrator Motor Adult Toy Details
Custom Small DC Motor Performance Characteristics
Technical Specifications
MODEL RATED NO LOAD RATED STALL
VOLTAGE SPEED CURRENT SPEED CURRENT CURRENT
V r/min mA r/min mA mA
0724 1.5 19900 45 17600 108 480
0724 5 20000 33 18500 65 400
0724 3 25300 28 21300 89 370
Product Diagnostics & Details
Mini Vibrator Motor Structure Overview
Custom Small DC Motor Vibrator Component details
Mini DC Vibrator Motor Testing Setup
Brushed DC Motor Assembly Features
Mini Vibrator Motor Dimensions and Mounting Specification
Custom Brush Low RPM DC Motor Technical Blueprint
Complete Micro Vibrator Motor Lineup
Frequently Asked Questions
What are the primary applications of this mini DC vibrator motor?

This mini DC vibrator motor is specifically designed for small personal care items, adult toys, micro massagers, and compact electronics requiring gentle, targeted vibration feedback.

What voltage options are available for this motor?

The motor supports various operating voltages, including 1.5V, 2.4V, 3V, 3.7V, and 5V DC, depending on the performance, power supply, and rotational speed requirements of your device.

Can the RPM and vibration intensity be adjusted?

Yes. By adjusting the input voltage, you can control the speed (RPM) and vibration strength. The motor is highly responsive to voltage changes, allowing for customizable vibration patterns.

What is the advantage of the brushed design in this micro motor?

Brushed micro DC motors offer a cost-effective, straightforward control structure, and reliable starting torque. This makes them ideal for simple, battery-operated electronic devices.

How does the motor perform under stall conditions?

According to our technical specifications, the stall current ranges between 370mA (at 3V) and 480mA (at 1.5V). This enables safe operation within standard battery-powered configurations.

Is this micro vibrator motor suitable for portable battery applications?

Yes, with low no-load current ratings (between 28mA and 45mA depending on the model), it is highly energy-efficient and perfectly matched for rechargeable and single-use battery setups.
