Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
1 / 5
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor

Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor

Send Inquiry

Product Description

Product Presentation
Product Dimensions
Product Model GM95SM545/555/575
Gearbox Length 95MM
Speed 14.5RPM~65RPM
Voltage 24V/24V/12V
Torque 6N.m/4 N.m/1.2 N.m
Support Customization The Transmission Dimensions And Motor Parameters Can Be Customized

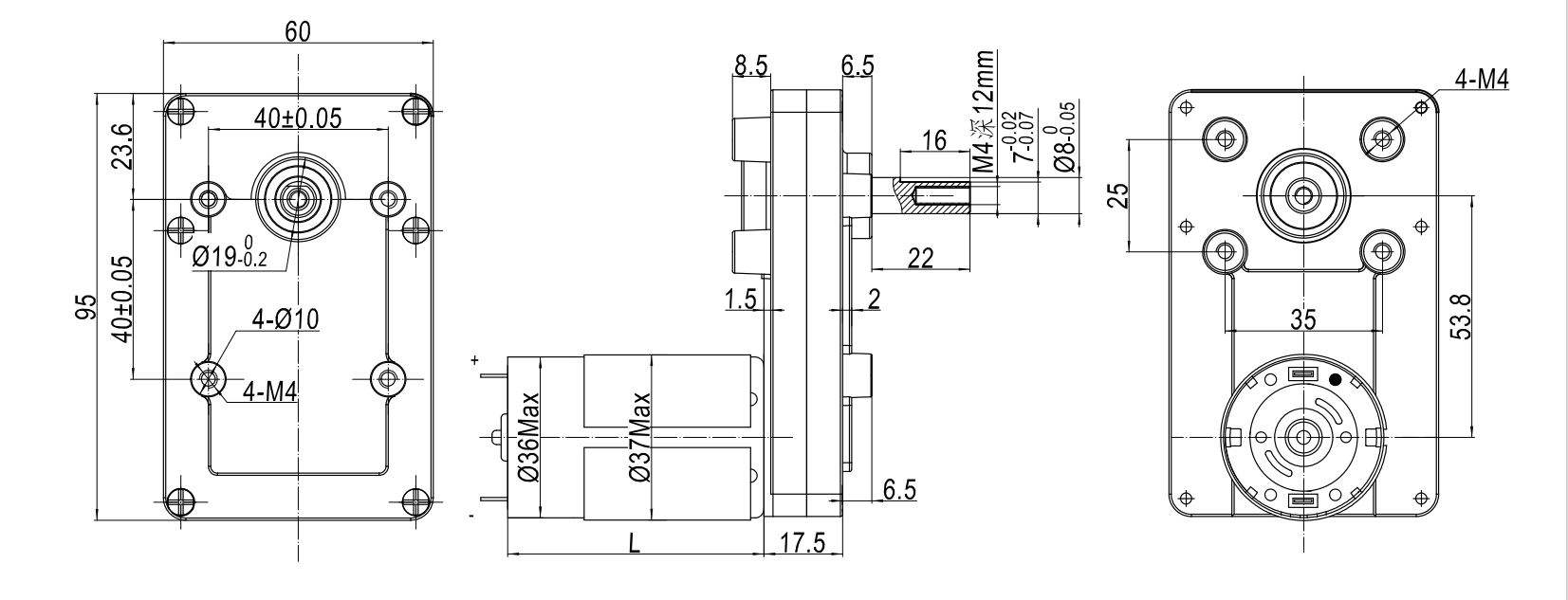

Technical Specifications Diagram

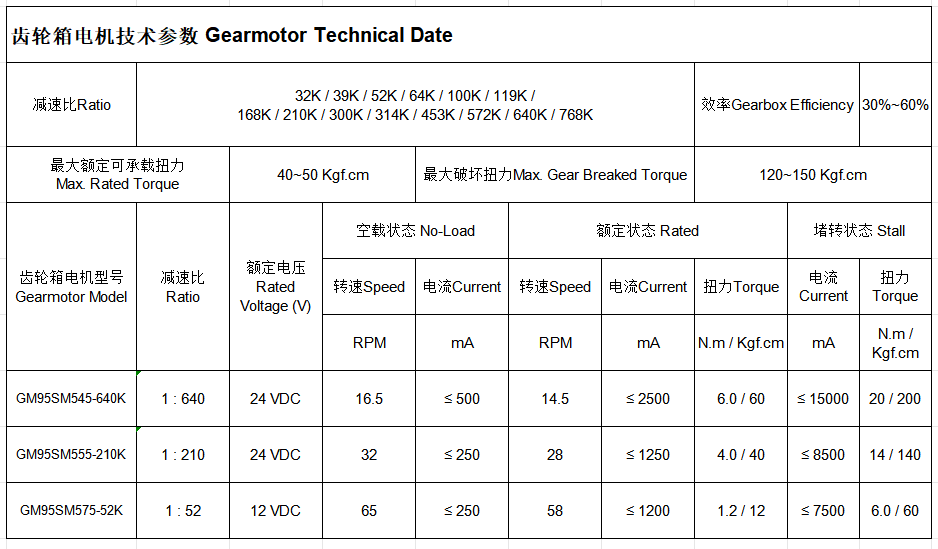

Motor Performance Curves
Application Overview 1
Application Overview 2
Application Overview 3
Production Process 1
Production Process 2
Production Process 3
FAQ
1. Q: Are you trading company or manufacturer?
A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
2. Q: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
3. Q: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer's requirements.
4. Q: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them on your behalf.
5. Q: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have complete quality testing machinery to verify parameters. This includes a Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise Tester etc.
6. Q: What is the typical lead time for custom production?
A: The standard production lead time varies depending on the specific customization requests and quantities. Typically, it ranges from 15 to 30 working days.
