Product Description

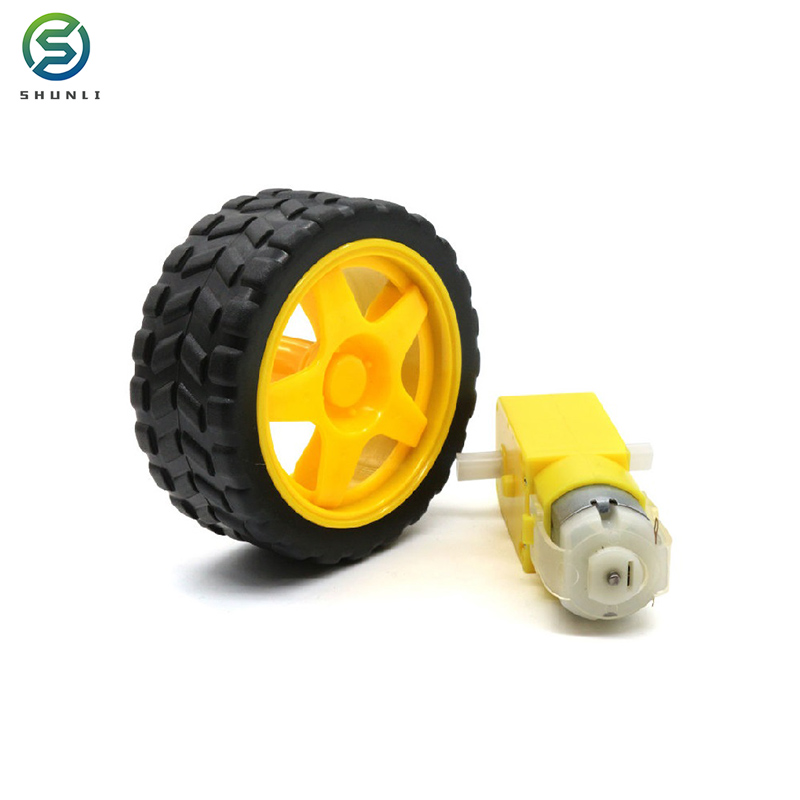

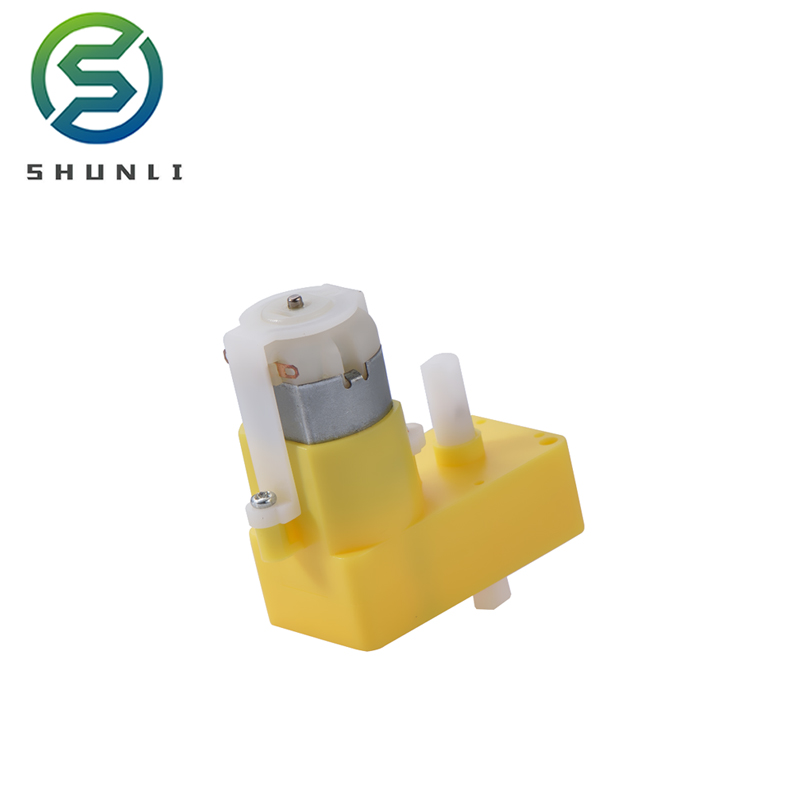

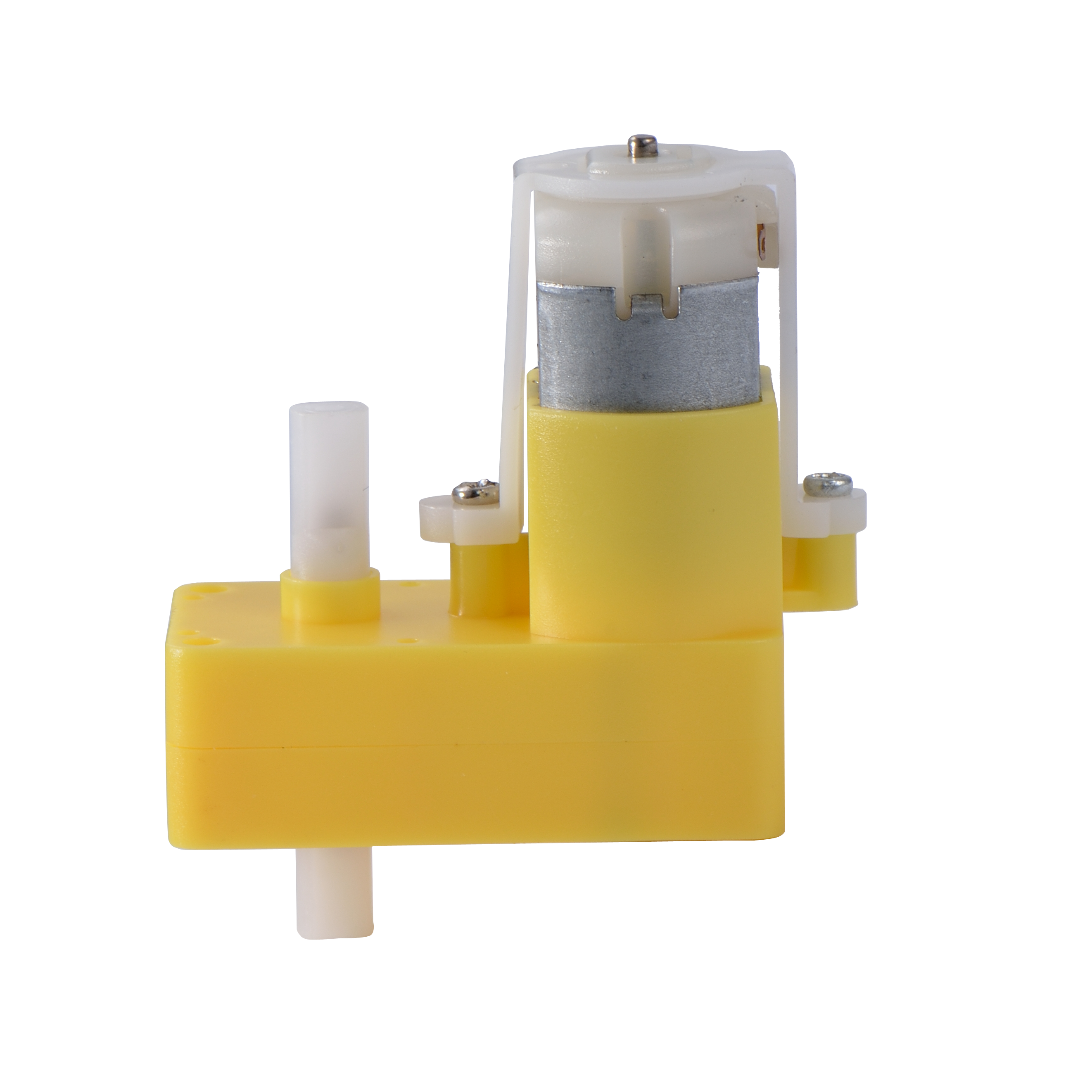

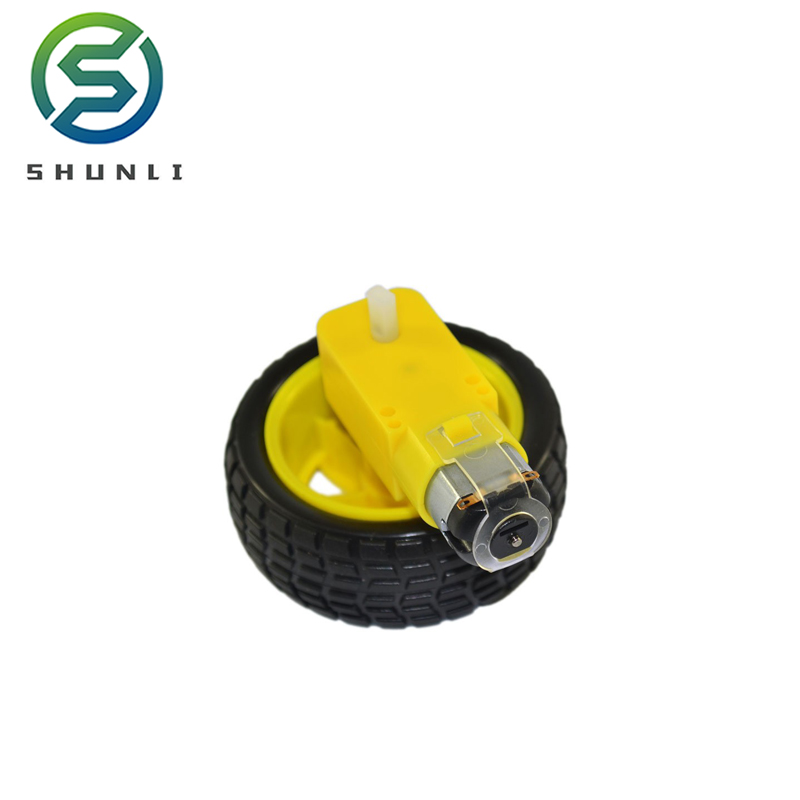

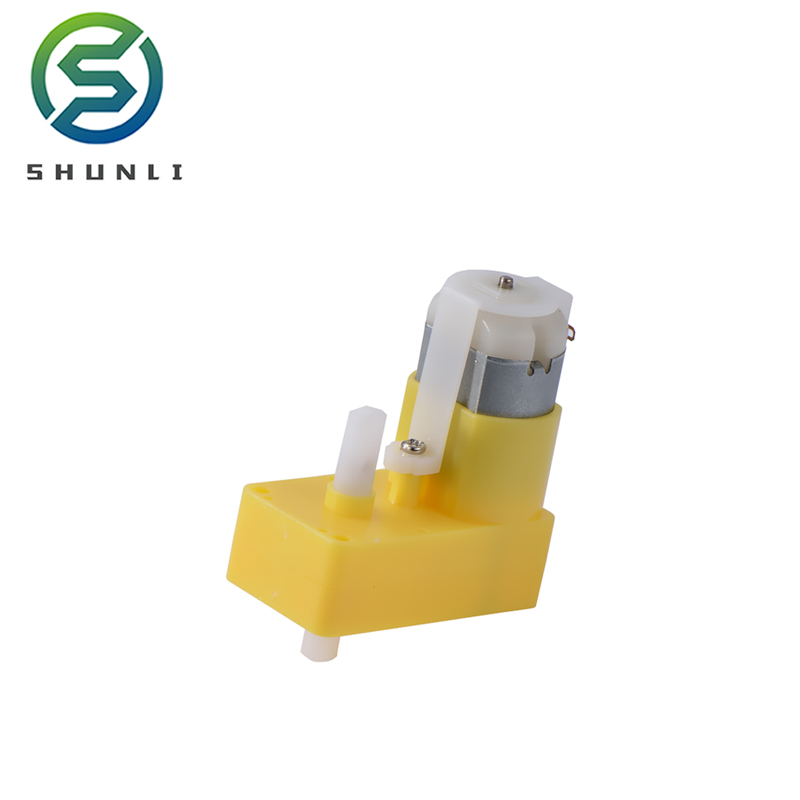

Yellow DC Gear Motor with Plastic Wheels of Toy Car
Promotion
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Characters
Model Voltage No-load Load Stall
Working Voltage (V) Rated Voltage (V) Speed (rpm) Current (A) Speed (rpm) Current (A) Torque Power Output (W) Stall Torque Current (A)
V rpm A rpm A N.m Kg.m W N.m Kg.m A
SGP01S-A130-14150-120 3-12.0V 4.5 100 0.2 87 0.5 0.066 0.675 0.4 0.265 2.7 1.25
SGP01S-A130-18100-220 3-12.0V 3.0 50 0.2 40 0.3 0.120 1.233 0.6 0.393 4.003 2.15
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Frequently Asked Questions
Q1: What is the operating voltage range for this yellow DC gear motor?
A: The motor has a wide working voltage range from 3.0V to 12.0V, with typical rated options at 3.0V and 4.5V depending on the specific model configuration.
Q2: What are the no-load speed options available for these motors?
A: We offer configurations with no-load speeds of 50 rpm (at 3.0V rated voltage) and 100 rpm (at 4.5V rated voltage) to meet different speed requirements.
Q3: How much stall torque can these gear motors handle?
A: The SGP01S-A130-14150-120 model has a stall torque of 0.265 N.m (2.7 Kg.m), while the SGP01S-A130-18100-220 model can reach up to 0.393 N.m (4.003 Kg.m).
Q4: Are the plastic wheels included with the gear motor unit?
A: Yes, this setup is designed as a complete set containing the yellow DC gear motor along with matching plastic wheels, making it ready to use for toy cars and DIY smart projects.
Q5: What projects are these yellow gear motors commonly used for?
A: They are widely applied in educational DIY toy cars, smart tracking robot platforms, obstacle avoidance vehicles, and small mechanical prototyping designs.
Q6: Can these motors support bi-directional rotation?
A: Yes, by reversing the polarity of the input voltage connected to the motor terminals, you can easily control the rotation to go either clockwise or counter-clockwise.
