775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

1 / 5

775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

Send Inquiry

Product Description

775 DC Motor for Power Tools Low Price Motor 12V 24V DC Motor

Product Details

Motor Customized Specification, Please contact me.

Reference Drawing

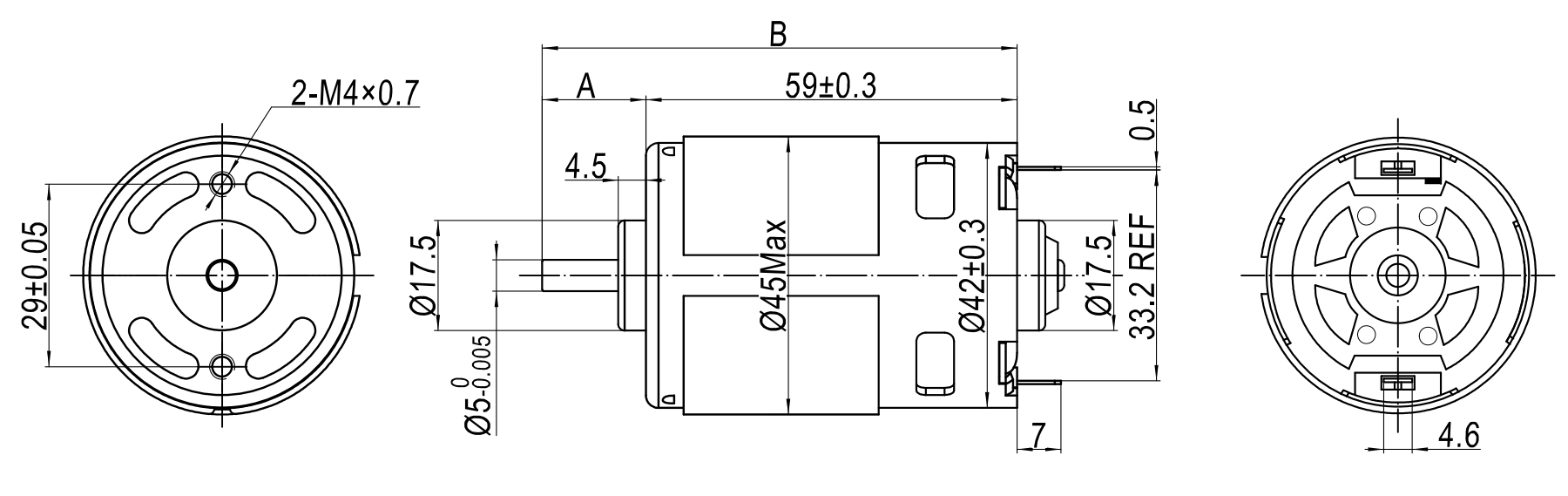

RS - 755 H

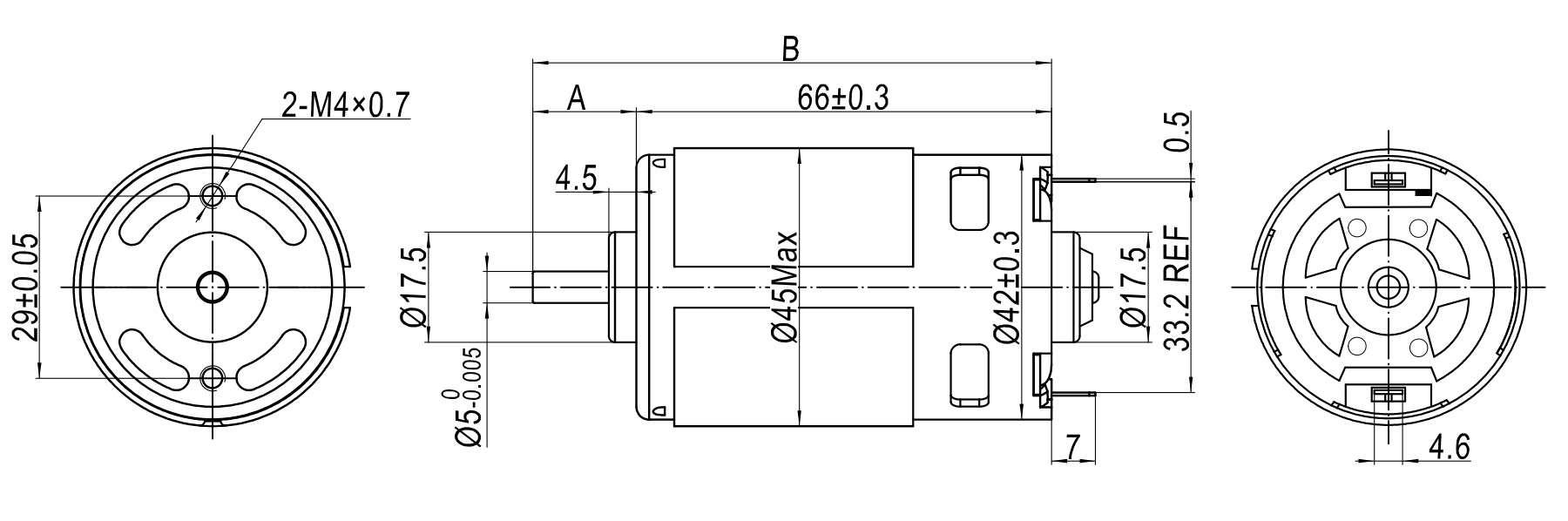

RS - 775 H

The length of shaft can be customized, Please contact me.

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
Series	Type	Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m / gf.cm)	Power (W)	Current (A)	Torque (mN.m / gf.cm)
RS-770H	8523R	6.0~12.0	12 VDC	15000	2.2	13177	15.91	81 / 826.2	111.8	115	666.9 / 6802
RS-775H	25110R	6.0~24.0	24 VDC	3478	0.15	2925	0.75	44.4 / 452.9	13.35	4.07	245.7 / 2506

Frequently Asked Questions

Q1: Are you a trading company or a manufacturer?

We're a factory. We specialize in micro DC motor and DC gear motor design and manufacture for more than 14 years.

Q2: What is the payment term for a new customer?

We can draw up an Ali Assurance Order Online for our new customer, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal, TT, etc.

Q3: I can't find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customer's specific requirements, including voltage, speed, torque, and shaft size.

Q4: Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, etc. If you have other specific certificate requirements, we can apply for them for you.

Q5: How is your Quality Control?

We have professional checking staff on every production line process. After finishing the whole motor assembly, we have complete quality testing equipment to test the motor parameters, such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.

Q6: Can the length of the shaft be customized?

Yes, the shaft length of the 755 and 775 DC motors can be customized to match your power tool or application specifications.

Looking forward to your feedback!

Product Detail

775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

Product Description

775 DC Motor for Power Tools Low Price Motor 12V 24V DC Motor
