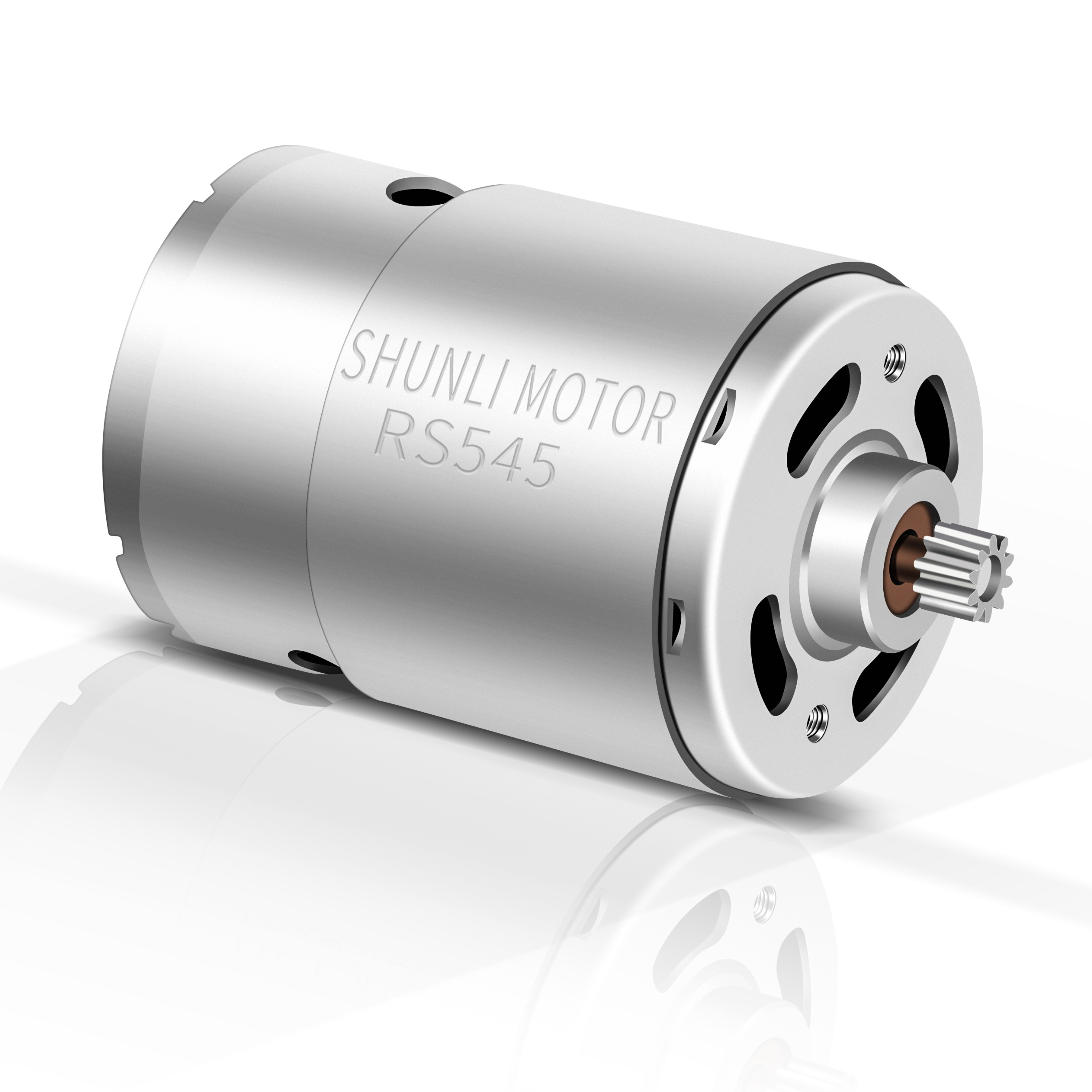

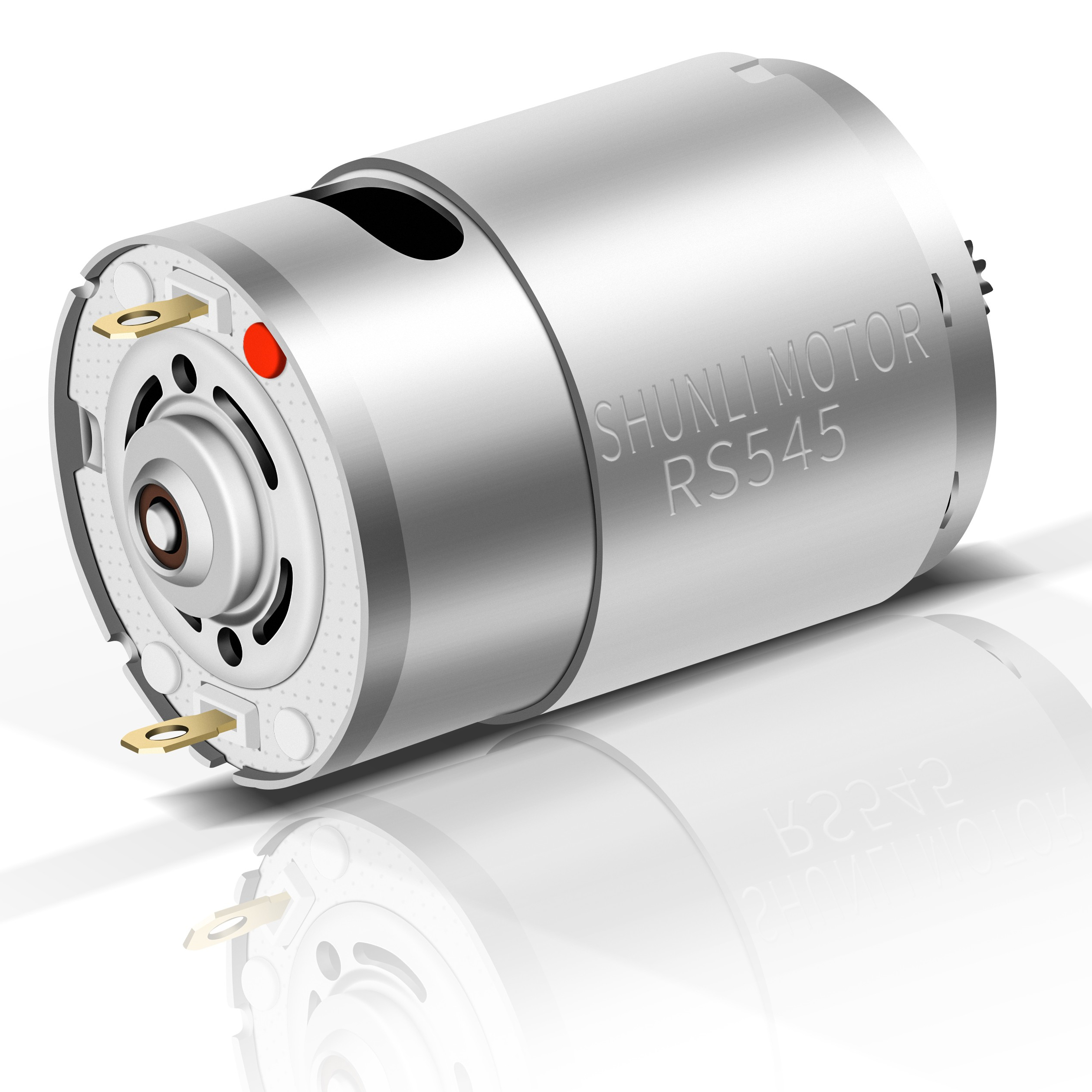

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

1 / 5

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Send Inquiry

Product Description

⚙️ Application

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM

Product Details

💡 Motor Customized Specification, Please contact me.

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09

------ RS - 545 A

Frequently Asked Questions (FAQ)

What voltage ranges do the RS 550, 545, and 555 DC motors support?

These motors operate across a versatile voltage range, typically from 6.0V to 24.0V DC, depending on the specific model and configurations chosen.

Can these DC motors achieve speeds up to 30,000 RPM?

Yes, depending on the winding configuration and voltage input, select models in the RS 550/545/555 series are capable of reaching high speed ranges up to 30,000 RPM.

What are the primary applications of these high RPM DC motors?

These PMDC motors are widely used in applications requiring high speed and torque, such as power tools, garden devices, household appliances, smart models, and custom automation equipment.

Is customized motor specification support available?

Yes. Voltage, speed, shaft length, torque, and other technical dimensions can be customized to match your product design and performance requirements.

How do I read the no-load and rated technical data values?

The no-load values represent the motor speed (RPM) and current (A) without any mechanical resistance. The rated values indicate performance specifications when operating under standard load conditions.

Product Detail

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Product Description
