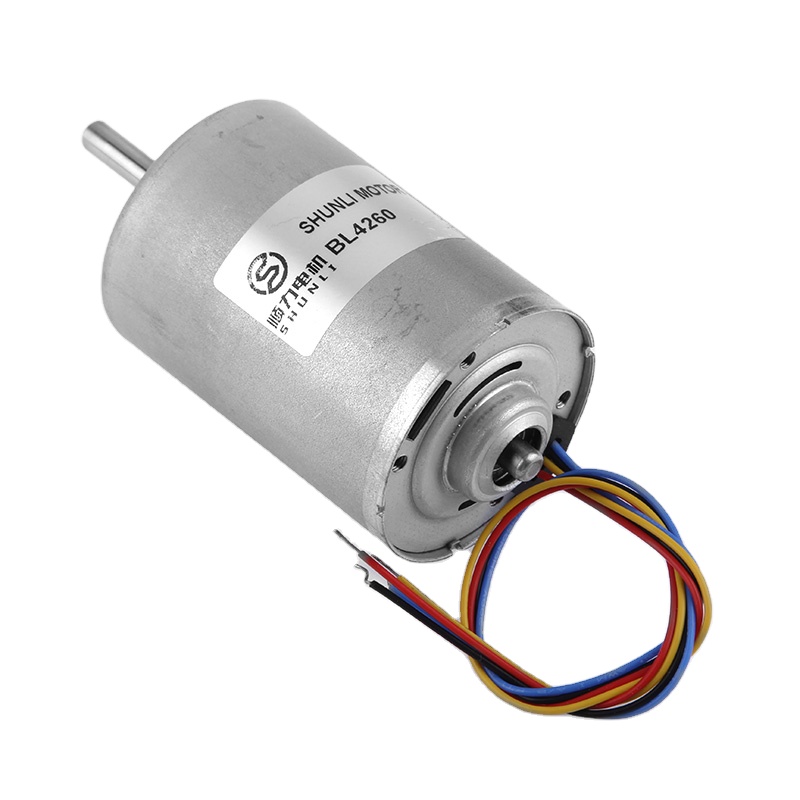

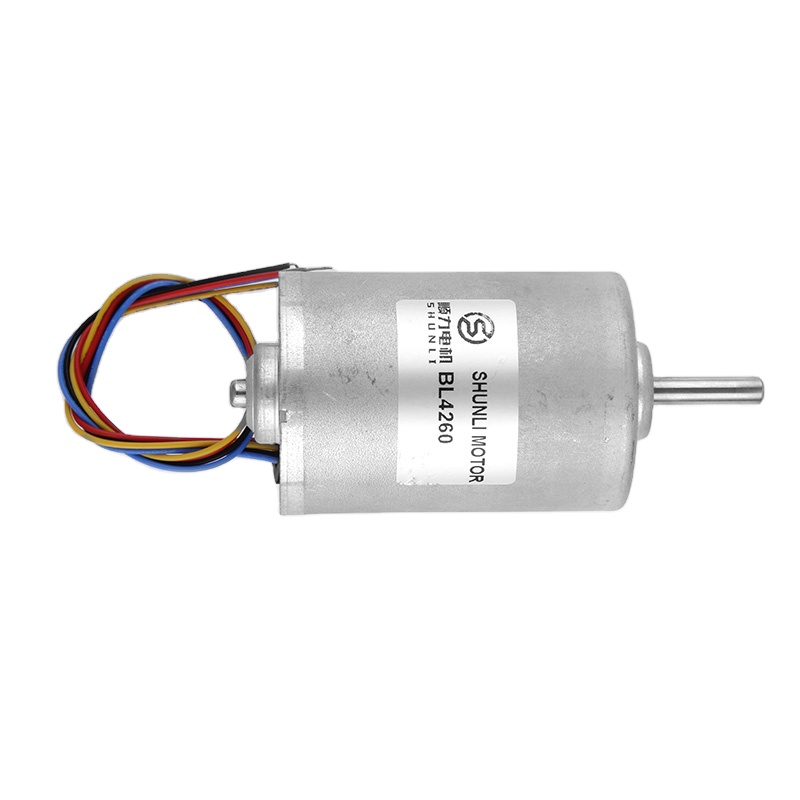

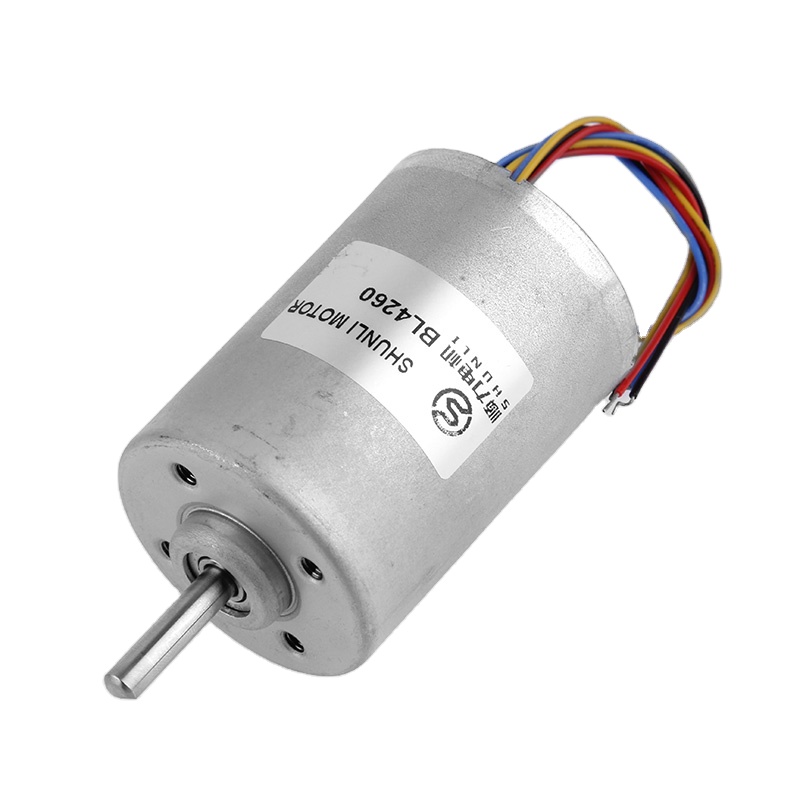

Power Brushless Dc Motor 12v 18v 24v 1500 RPM 3000 RPM 4000 RPM Micro Motor Permanent Magnet 5MM High Torque Brushless Motor

Send Inquiry

Product Description

Product Details

Motor Customized Specification Available.

Reference Technical Specification

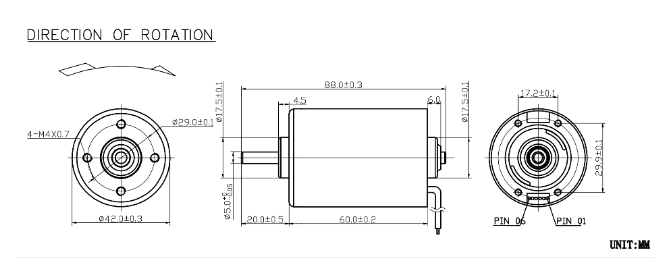

Reference Datasheet

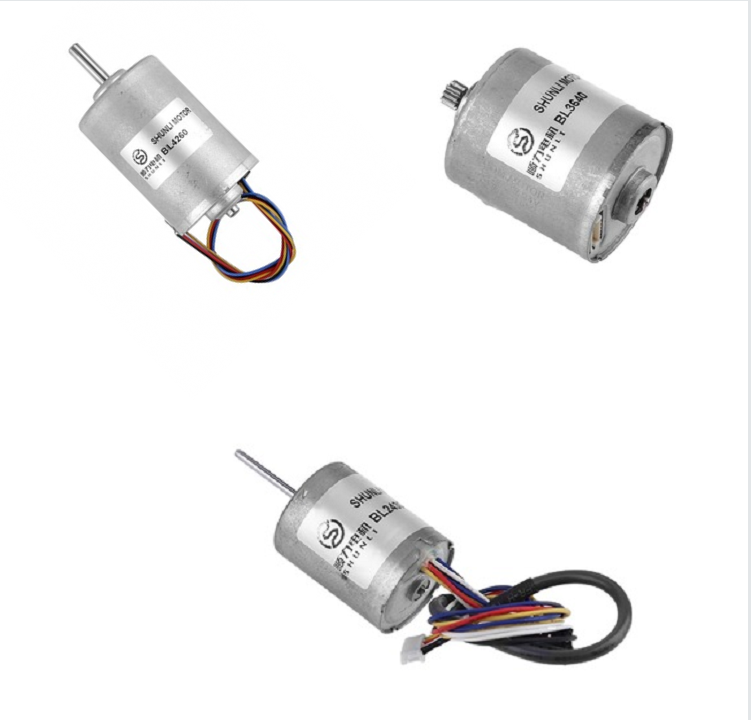

Recommend Product

Frequently Asked Questions

What voltage options are available for this brushless DC motor?

This micro brushless DC motor is available in 12V, 18V, and 24V configurations, designed to accommodate various power requirements.

What are the speed options (RPM) for this permanent magnet motor?

The motor supports rated speeds of 1500 RPM, 3000 RPM, and 4000 RPM, providing versatile options for different high-torque applications.

What are the typical applications for this brushless DC motor?

It is highly suitable for washing machines, RC planes, DIY technical tools, fans, robotics, pumps, and other precision automation hardware.

Can I customize the specifications of the motor?

Yes, customized motor specifications including voltage, speed, and dimensions can be provided to meet your specific application requirements.

What are the pin configurations for the motor terminations?

The termination layout consists of 5 pins: Pin 1 (VCC), Pin 2 (FG), Pin 3 (CW/CCW control), Pin 4 (GND), and Pin 5 (PWM speed control).

What is the shaft size and magnet type of this micro motor?

This motor features a 5MM diameter shaft and uses permanent magnets to achieve high torque output and efficient, brushless performance.
